有填料封闭管式刀形触头熔断器RT0系列

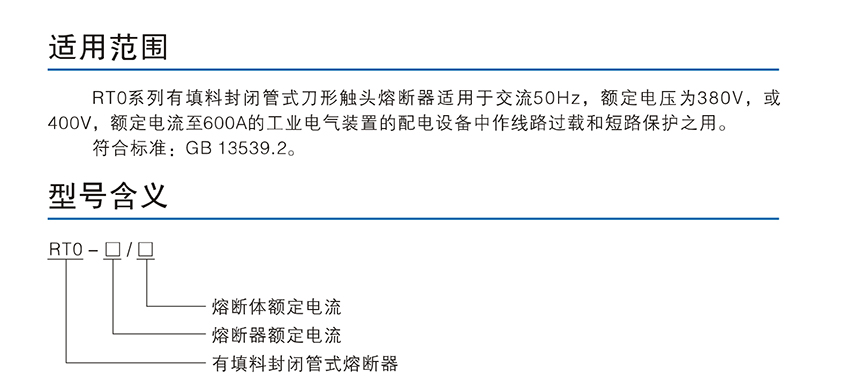

适用于交流50Hz，额定电压为380V，或400V额定电流支600A的工业电气装置的配电设备中做线路过载和短路保护之用
点击订货号查看价格，了解更多请登录，享受优惠请拨打4008-824-824
- 华通机电(FATO)
- -+
共 55 个 型 号 符 合 条 件

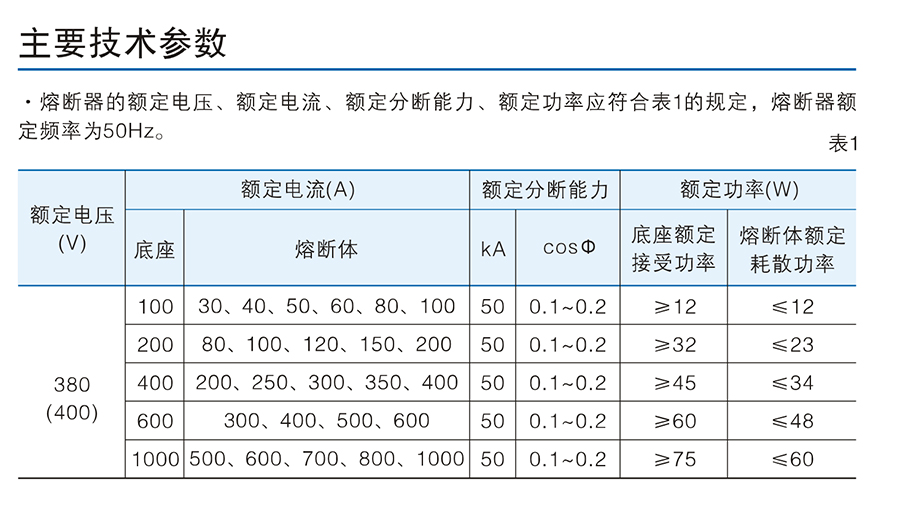

| 订货号 | 型号 | 一般 发货日 | 额定分析能力(kA) | 熔断体额定耗散功率(W) | 熔断器(底座)额定耗散功率(W) | 额定电压(V) | 熔断器(底座)额定电流(V) |
|---|---|---|---|---|---|---|---|
| 212324 | RT0-100/30 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212325 | RT0-100/40 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212326 | RT0-100/50 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212327 | RT0-100/60 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212328 | RT0-100/80 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212329 | RT0-100/100 | 50 | ≤12 | ≥12 | 380/400 | 100 | |
| 212330 | RT0-200/80 | 50 | ≤23 | ≥32 | 380/400 | 200 | |
| 212331 | RT0-200/100 | 50 | ≤23 | ≥32 | 380/400 | 200 | |
| 212332 | RT0-200/120 | 50 | ≤23 | ≥32 | 380/400 | 200 | |
| 212333 | RT0-200/150 | 50 | ≤23 | ≥32 | 380/400 | 200 | |
| 212334 | RT0-200/200 | 50 | ≤23 | ≥32 | 380/400 | 200 | |
| 212335 | RT0-400/200 | 50 | ≤34 | ≥45 | 380/400 | 400 | |
| 212336 | RT0-400/250 | 50 | ≤34 | ≥45 | 380/400 | 400 | |
| 212337 | RT0-400/300 | 50 | ≤34 | ≥45 | 380/400 | 400 | |
| 212338 | RT0-400/350 | 50 | ≤34 | ≥45 | 380/400 | 400 | |
| 212339 | RT0-400/400 | 50 | ≤34 | ≥45 | 380/400 | 400 | |
| 212340 | RT0-600/300 | 50 | ≤48 | ≥60 | 380/400 | 600 | |
| 212341 | RT0-600/400 | 50 | ≤48 | ≥60 | 380/400 | 600 | |
| 212342 | RT0-600/500 | 50 | ≤48 | ≥60 | 380/400 | 600 | |
| 212343 | RT0-600/600 | 50 | ≤48 | ≥60 | 380/400 | 600 | |
